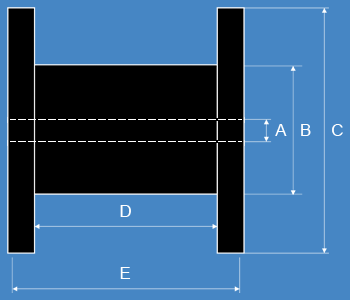

| 线轴类型 | A | B | C | D | E | 线径范围 | 最大重量 | 自重 |
|---|---|---|---|---|---|---|---|---|
 DIN 80 |
16mm | 50mm | 80mm | 64mm | 80mm | Up to 0.25mm | 0.800 Kg | 0.070 Kg |
| .630″ | 2.00″ | 3.15″ | 2.50″ | 3.15″ | Up to .010″ | 1.7 lb | 0.15 lb | |
 DIN 100 |
16mm | 64mm | 100mm | 80mm | 100mm | 0.19 – 0.4mm | 1.500 Kg | 0.125 Kg |
| .630″ | 2.50″ | 3.90″ | 3.15″ | 3.90″ | .0076″ – .016″ | 3.3 lb | 0.28 lb | |
 DIN 125 |
16mm | 80mm | 125mm | 100mm | 125mm | 0.19 – 0.55mm | 3 Kg | 0.170 Kg |
| .630″ | 3.15″ | 4.90″ | 3.90″ | 4.90″ | .0076″ – .022″ | 6.5 lb | 0.38 lb | |
 DIN 160 |
22mm | 100mm | 160mm | 128mm | 160mm | 0.25 – 0.71mm | 5 Kg | 0.350 Kg |
| .865″ | 3.90″ | 6.300″ | 5.040″ | 6.300″ | .010″ – .028″ | 11 lb | 0.77 lb | |
 DIN 200 |
36mm | 125mm | 200mm | 160mm | 200mm | 0.4 – 0.81mm | 10 Kg | 0.600 Kg |
| 1.400″ | 4.920″ | 7.875″ | 6.300″ | 7.875″ | .016″ – .032″ | 22 lb | 1.32 lb | |
 DIN 250 |
36mm | 160mm | 250mm | 160mm | 200mm | 0.4 – 1.5mm | 20 Kg | 1.050 Kg |
| 1.400″ | 6.300″ | 10.000″ | 6.300″ | 7.875″ | .016″ – .060″ | 44 lb | 2.32 lb | |
 DIN 355 |
36mm | 225mm | 355mm | 162mm | 200mm | 1.0 – 3.0mm | 40 Kg | 1.850 Kg |
| 1.400″ | 8.75″ | 14.000″ | 6.25″ | 8″ | .040″ – .118″ | 88 lb | 4.08 lb | |
 DIN 500 |
36mm | 316mm | 500mm | 180mm | 250mm | 1.2 – 3.0mm | 75 Kg | 7.650 Kg |
| 1.400″ | 12.440″ | 19.690″ | 7.090″ | 9.840″ | .047″ – .118″ | 165 lb | 16.87 lb | |
 SK 460 |
305mm | 318mm | 460mm | 91mm | 105mm | 0.25 – 1.8mm | 45 Kg | 1.850 Kg |
| 12.000″ | 12.520″ | 18.110″ | 3.580″ | 4.134″ | .010″ – .072″ | 95 lb | 4.08 lb | |
 SK 255 |
216mm | 222mm | 253mm | 30mm | 36mm | 0.25 – 1.0mm | 1 Kg | 0.170 Kg |
| 8.500″ | 8.740″ | 10.000″ | 1.200″ | 1.420″ | .010″ – .040″ | 2.20 lb | 0.38 lb | |
 Locking Reel |
16mm | 70mm | 102mm | 38mm | 45mm | 0.25 – 1.0mm | 0.500 Kg | 0.070 Kg |
| .630″ | 2.750″ | 4.000″ | 1.500″ | 1.770″ | .010″ – .040″ | 1.00 lb | 0.15 lb | |
 ¼ Cat |
16mm | 43mm | 63mm | 51mm | 60mm | Up to 0.25mm | 0.300 Kg | 0.050 kg |
| .630″ | 1.700″ | 2.500″ | 2.000″ | 2.360″ | Up to .010″ | 0.60 lb | 0.11 lb | |
 ½ Cat |
16mm | 43mm | 63mm | 76mm | 86mm | Up to 0.25mm | 0.500 Kg | 0.070 Kg |
| .630″ | 1.700″ | 2.500″ | 3.000″ | 3.390″ | Up to .010″ | 1.00 lb | 0.15 lb | |
 Argon / Mig |
52mm | 208mm | 300mm | 90mm | 102mm | 0.5 – 1.64mm | 12 Kg | 0.680 Kg |
| 2.050″ | 8.190″ | 11.810″ | 3.540″ | 4.020″ | .020″ – .064″ | 25 lb | 1.50 lb |
每个线轴都包含一条连续长度的线材。在大部分情况下，我们可连接线材以获得更大的长度，或将订单拆分成重量较低的线圈（请询问具体信息）。
每个线轴都经过 PMI（合金材料鉴别）测试。根据线轴数量，对每个线轴或按照我们的抽样计划执行张力测试。
所有线轴贴有标签，并根据所选运输模式使用合适的纸盒或木箱包装。
